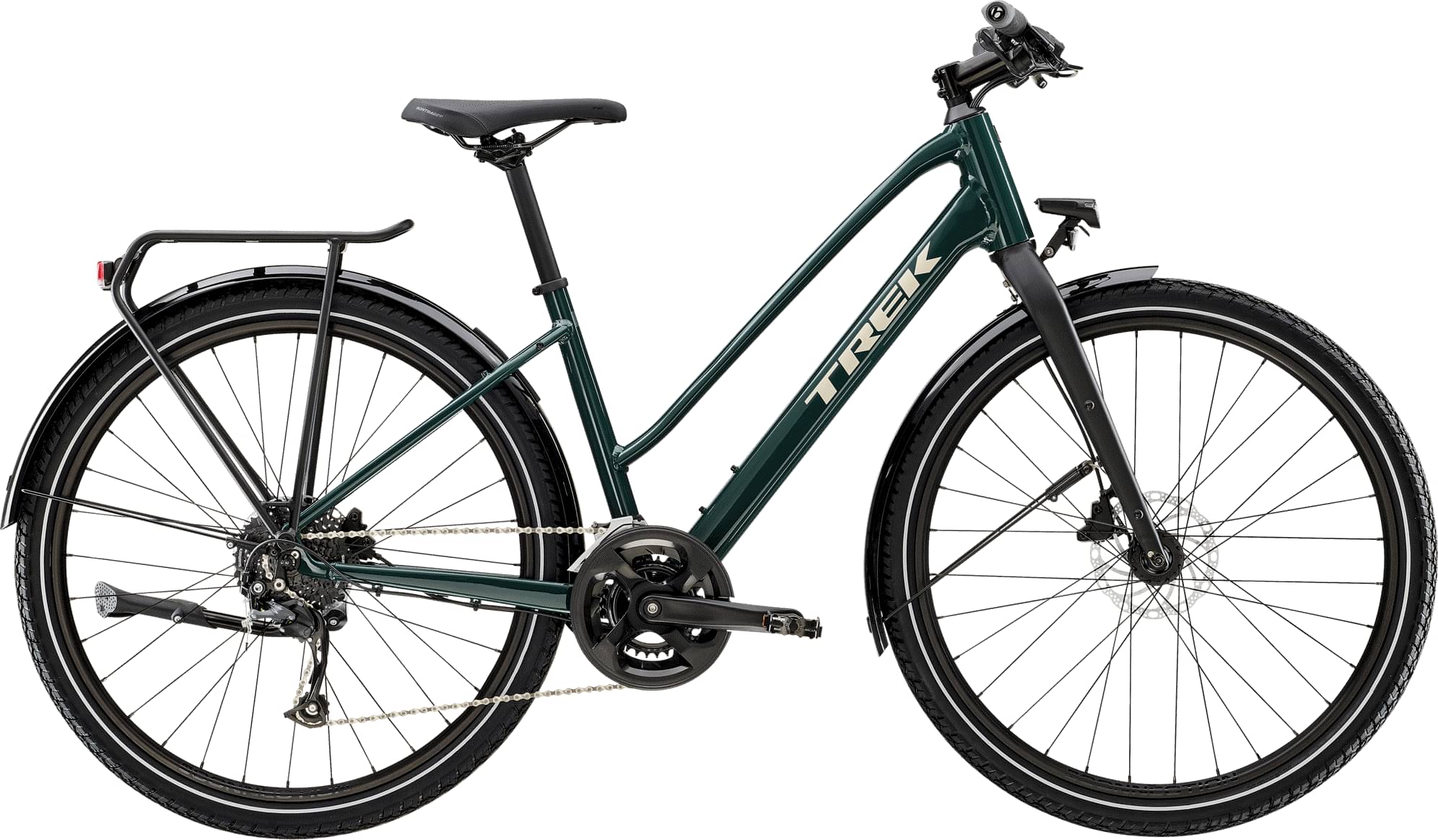

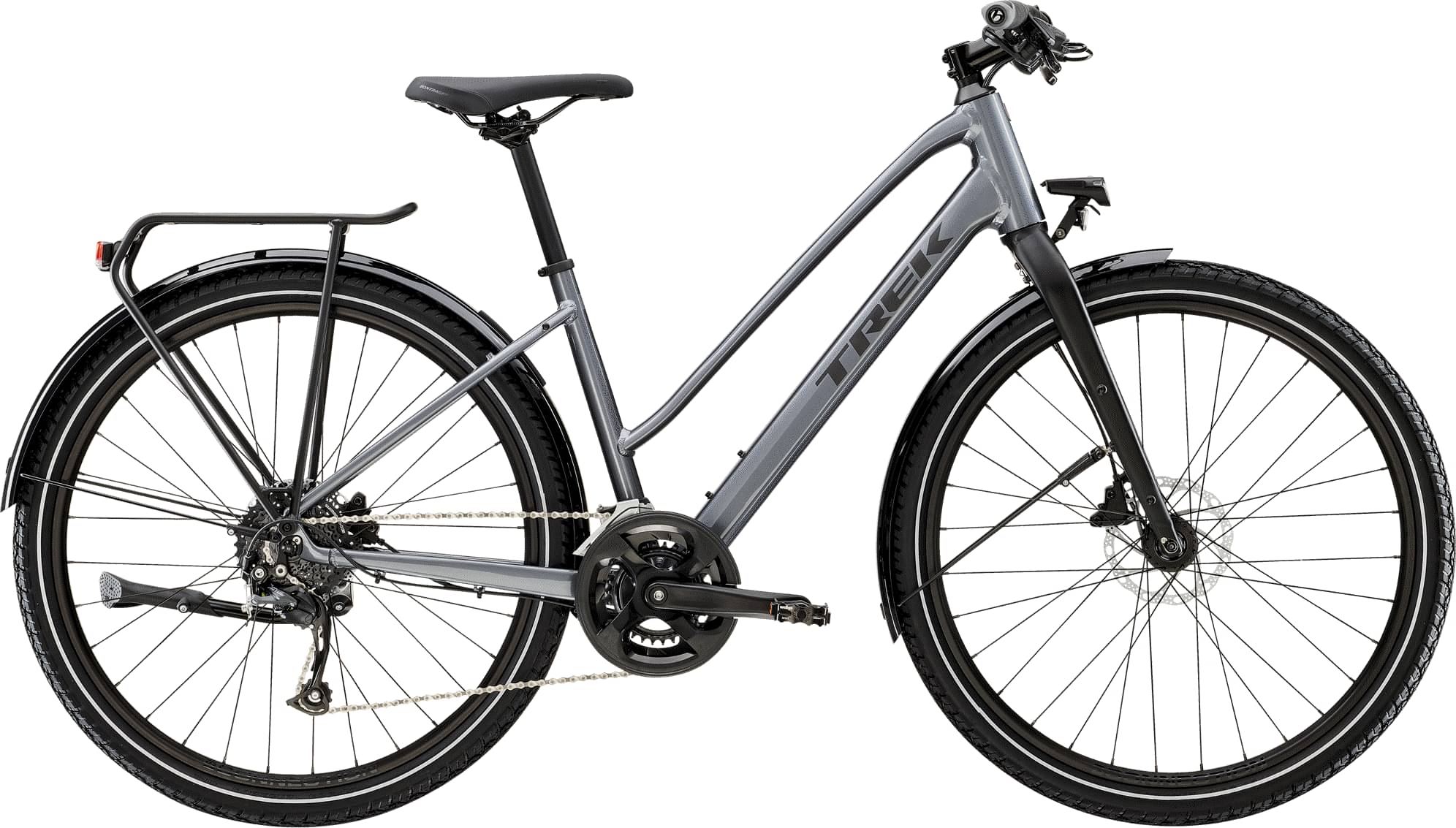

Trek Dual Sport 2 Equipped Stagger Gen 5 2023
2023 Urban
Estimate price |
1,146$
Weight | 14.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Altus, Acera -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount. 135x5 mm QR
Suspension Fork
Dual Sport alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR
Drivetrain
Rear Derailleur
Shimano Altus M2000, long cage
Front Derailleur
Shimano Acera T3000, 34.9 mm clamp, top swing, dual pull
Shift Levers
Shimano Altus M2010, 9-speed
Cassette
Shimano HG200, 11-36, 9-speed
Crank
Forged alloy, 46/30, chainguard, 170 mm length
Bottom Bracket
Sealed cartridge, 68 mm
Chain
KMC X9
Pedals
Wellgo nylon body, alloy cage
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes
14 g stainless steel
Tires
Bontrager GR0 Comp, wire bead, reflective strip, 60 tpi, 650x50 mm
Brakes
Brakes
Tektro HD-R280 hydraulic disc, flat-mount, 160 mm rotor
Cockpit
Stem
Size: M, L, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length; Size: XL, Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
Handlebar
Size: M, Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width; Size: L, XL, Bontrager alloy, 31.8 mm, 15 mm rise, 690 mm width
Grips
Bontrager Satellite
Seat
Saddle
Bontrager Sport
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.61 mm | 1.64 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm |
| Front Center | 623 mm | 632 mm | 639 mm |
| Rake | 40 mm | 39 mm | 38 mm |
| Trail | 83 mm | 80 mm | 74 mm |
| Stack | 592 mm | 618 mm | 646 mm |
| Reach | 379 mm | 385 mm | 395 mm |
| Top Tube Length | 559 mm | 579 mm | 609 mm |
| Seat Tube Angle | 73.3 ° | 72.8 ° | 71.8 ° |
| Seat Tube Length | 445 mm | 482 mm | 520 mm |
| Head Tube Angle | 70.3 ° | 70.8 ° | 71.8 ° |
| Head Tube Length | 125 mm | 135 mm | 215 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1057 mm | 1066 mm | 1073 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 625 mm | 626 mm | 624 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 187 cm | 197 cm |
About this model
Dual Sport 2 Equipped Stagger Gen 5 is part of the Trek Dual Sport model. Trek launched 54 bikes of this model so far. Take a sneak peek at all Trek Dual Sport bikes models from 2023, by clicking here.
Model range prices
Trek Dual Sport 1 Gen 4 2023 is the most affordable bike of this model and has a price of 649$. On the other hand, Trek Dual Sport 3 Equipped Gen 5 2023, is the most expensive and costs 1273$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter bikes
Our math shows that the average cost of a dependable Commuter bike is 762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Trek released this model in 2023, its price was 1061$. If we compare this with the average Commuter bike cost we notice that the price is 39.24% higher.
Average weight for Commuter bikes
Commuter bikes have an average weight of 14.29 kg (31.5 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Trek Dual Sport 2 Equipped Stagger Gen 5 it’s weighing 14.7 kg (32.41 lbs). At this weight, is slightly heavier than average. In conclusion, the average Commuter bike weighs 2.87% less than Dual Sport 2 Equipped Stagger Gen 5.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Dual Sport 2 Equipped Stagger Gen 5 components
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The wheels on Dual Sport 2 Equipped Stagger Gen 5 are the aluminum type. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Dual Sport 2 Equipped Stagger Gen 5 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Trek Dual Sport 2 Equipped Stagger Gen 5 bike has 3 sizes, in the range of 165 cm – 197 cm (5.41 ft – 6.46 ft). In conclusion, you won’t have a problem finding one that suits you.
