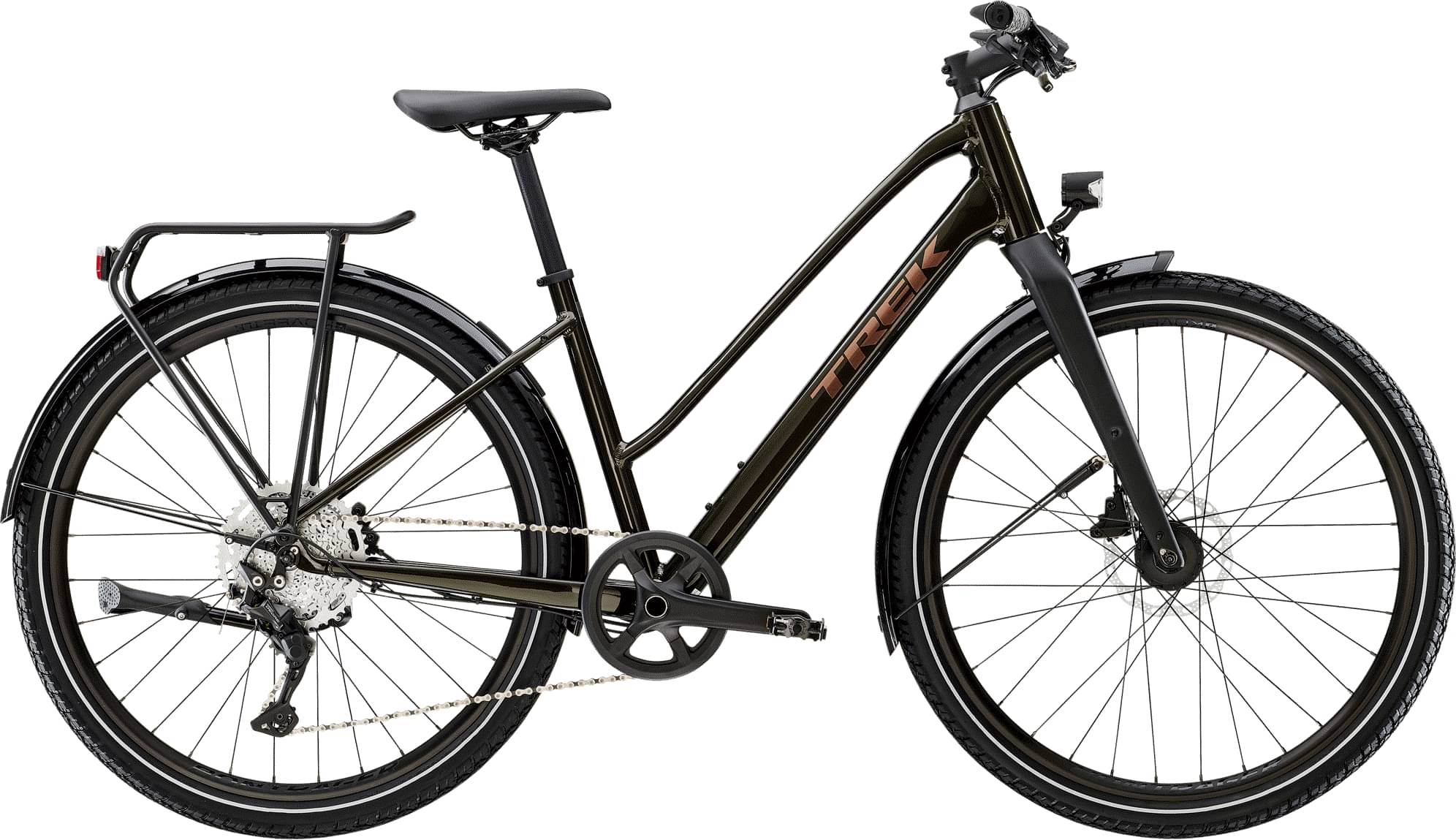

Trek Dual Sport 3 Equipped Stagger Gen 5 2023
2023 Urban
Estimate price |
1,375$
Weight | 14.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount. 135x5 mm QR
Suspension Fork
Dual Sport carbon, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR
Drivetrain
Rear Derailleur
Shimano Deore M5120, long cage
Shift Levers
Shimano Deore M4100, 10-speed
Cassette
Shimano Deore M4100, 11-46, 10-speed
Crank
Size: M, Prowheel alloy, 40T narrow-wide ring, 170 mm length; Size: L, XL, Prowheel alloy, 40T narrow-wide ring, 175 mm length
Chain
KMC X10, 10-speed
Pedals
Wellgo nylon body, alloy cage
Wheels
Front Hub
Dynamo, 6V 3.0 W, 100x5 mm QR
Rear Hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rims
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tires
Bontrager GR0 Expert, wire bead, puncture protection, 60 tpi, 650x50c
Brakes
Brakes
Shimano hydraulic disc, MT201 lever, UR300 calliper
Cockpit
Stem
Size: M, L, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length; Size: XL, Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length
Handlebar
Size: M, Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width; Size: L, XL, Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width
Grips
Bontrager XR Endurance Elite
Seat
Saddle
Bontrager H1
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.61 mm | 1.64 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm |
| Front Center | 623 mm | 632 mm | 639 mm |
| Rake | 40 mm | 39 mm | 38 mm |
| Trail | 83 mm | 80 mm | 74 mm |
| Stack | 592 mm | 618 mm | 646 mm |
| Reach | 379 mm | 385 mm | 395 mm |
| Top Tube Length | 559 mm | 579 mm | 609 mm |
| Seat Tube Angle | 73.3 ° | 72.8 ° | 71.8 ° |
| Seat Tube Length | 445 mm | 482 mm | 520 mm |
| Head Tube Angle | 70.3 ° | 70.8 ° | 71.8 ° |
| Head Tube Length | 125 mm | 135 mm | 215 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1057 mm | 1066 mm | 1073 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 625 mm | 626 mm | 624 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 174 cm | 185 cm |
| Rider Max Height | 176 cm | 187 cm | 197 cm |
Model Overview
Dual Sport 3 Equipped Stagger Gen 5 is part of the Trek Dual Sport model. Trek released 54 bikes variations of this model so far. Take a sneak peek at all Trek Dual Sport bikes models from 2023, by clicking here.
Model range prices
Trek Dual Sport 1 Gen 4 2023 is the cheapest bike model and costs 649$. Trek Dual Sport 3 Equipped Gen 5 2023 is the most expensive one and costs 1273$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter bikes average price
If you want an acceptable Commuter bike you should know that the average price is 762$. However, even though the average price of a Commuter bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1273$. In conclusion, this bike price is 67.06% more expensive than the price of the average Commuter bike.
Commuter bikes average weight
The average weight for Commuter bikes is 14.29 kg (31.5 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Dual Sport 3 Equipped Stagger Gen 5 weighs 14.1 kg (31.09 lbs) and is slightly lighter than the average. In other words, this model is 1.35% lighter than the average Commuter bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Dual Sport 3 Equipped Stagger Gen 5 components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on Dual Sport 3 Equipped Stagger Gen 5 are the aluminum type. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Dual Sport 3 Equipped Stagger Gen 5 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Dual Sport 3 Equipped Stagger Gen 5 comes in 3 sizes, that range from 165 cm – 197 cm (5.41 ft – 6.46 ft). In conclusion, you won’t have a problem finding one that suits you.
