Vitus ZX-1 EVO Force eTap AXS 2023
2023 Road
Estimate price |
6,502$
Weight | 8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ZX-1 EVO Carbon, SL UD Carbon, UCI Approved, Internal Cable Routing, 12mm x 142mm Hub Spacing, Flat Mount, Axle Specifcations: 172mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
Suspension Fork
ZX-1 EVO Carbon, SL UD Carbon, UCI Approved, Tapered Steerer, 100 x 12mm, Flat Mount, Size Specific Offset
Drivetrain
Rear Derailleur
SRAM Force eTap AXS, 12 Speed, Short Cage
Front Derailleur
SRAM Force eTap AXS, 2 x 12 Speed, Braze-On
Shift Levers
SRAM Force eTap AXS, 12 Speed
Cassette
SRAM XG 1270 D1, 10-33T, 12 Speed

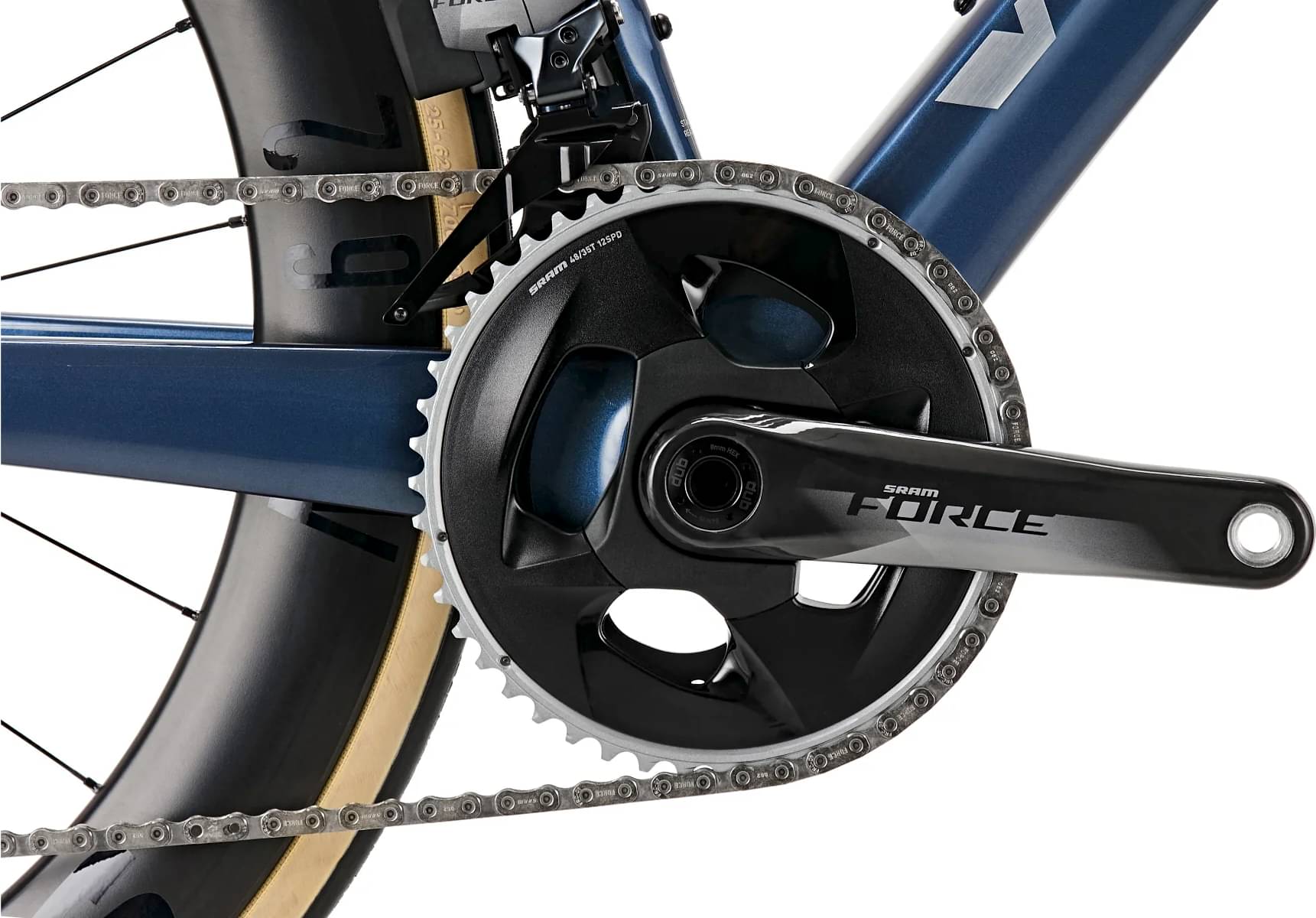

Crank
SRAM Force D1 DUB, 48/35T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL: 175mm
Bottom Bracket
SRAM DUB BB386, DUB for BB386EVO
Chain
SRAM Force D1, 12 Speed
Wheels
Front Hub
Reynolds GW TR3, 100 x 12mm, Centre Lock
Rear Hub
Reynolds GW TR3, 142 x 12mm, Centre Lock, XD-R Freehub
Rims
Reynolds AR58, Carbon, TubelessReady, Disc Brake, Rim Depth: 58mm, Inner Rim Width: 19mm, Outer Rim Width: 28mm
Tires
Front: Michelin Power Cup Classic TS TLR, 700c x 25c, Tubeless Ready, Rear: Michelin Power Cup Classic TS TLR, 700c x 25c, Tubeless Ready
Brakes
Brakes
SRAM Force eTap AXS D1 Disc, Hydraulic Disc, Flat Mount
Cockpit
Stem
Vision Metron 5D Acr Integrated Bar/Stem Combo, 125mm drop, - 6 degrees, XS:100mm, S:100mm, M:110mm, L:110mm, XL:120mm, XXL:120mm
Handlebar
Vision Metron 5D ACR Integrated Bar/Stem Combo, UD Carbon, XS:400mm S:400mm M:420mm L:420mm XL:420mm XXL:420mm
Grips
Vitus Super Grip, Anti Slip
Headset
FSA/Vitus ACR, Sealed Bearings, 1.5" 36x45 degrees (FSA No.55ACR), Vitus/FSA Headset Cover
Seat
Saddle
Vitus Race Performance, CRN-Ti Rail, Pressure Relief Channel
Seatpost
ZX-1 EVO Aero, XS/S: 300mm M/L/XL/XXL: 350mm, +20mm/-2mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.37 mm | 1.4 mm | 1.42 mm | 1.42 mm | 1.43 mm |
| Bottom Bracket Height | 266 mm | 267 mm | 267 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 579 mm | 590 mm | 591 mm | 599.9 mm | 611 mm | 623 mm |
| Rake | 51 mm | 51 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 62 mm | 58 mm | 57 mm | 55 mm | 53 mm | 52 mm |
| Stack | 502 mm | 524 mm | 545 mm | 564 mm | 580 mm | 597 mm |
| Reach | 374 mm | 383 mm | 389 mm | 398 mm | 408 mm | 418 mm |
| Top Tube Length | 522 mm | 539 mm | 553 mm | 568 mm | 583 mm | 594 mm |
| Seat Tube Angle | 73.6 ° | 73.5 ° | 73.4 ° | 73.3 ° | 73.2 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 70.9 ° | 71.6 ° | 72.4 ° | 72.9 ° | 73.2 ° | 73.5 ° |
| Head Tube Length | 89.5 mm | 112.3 mm | 129.6 mm | 147.8 mm | 164.5 mm | 181 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 981 mm | 992 mm | 993 mm | 1002 mm | 1014 mm | 1026 mm |
| Bottom Bracket Drop | 70 mm | 69 mm | 69 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 754 mm | 776 mm | 796 mm | 817 mm | 833 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model
ZX-1 EVO Force eTap AXS is part of the Vitus Zx 1 model. There are 20 bikes that carry this model name. Take a sneak peek at all Vitus Zx 1 bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Vitus ZX-1 EVO Rival AXS 2023 has a starting price of 4199$. Vitus ZX-1 EVO Red eTap AXS 2023 on the other hand is the most expensive at 7297$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Aero bikes
According to our math, the average price for a trustworthy Aero bike is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Vitus released this model in 2023, its price was 5837$. Comparing the average cost of an Aero bike to this one, you will see that ZX-1 EVO Force eTap AXS price is 38.61% higher.
Aero bikes average weight
The average weight for Aero bikes is 7.34 kg (16.18 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Vitus ZX-1 EVO Force eTap AXS it’s weighing 8 kg (17.64 lbs). At this weight, is a bit heavier than average. In short, the average Aero bike weight is 8.99% lower than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
ZX-1 EVO Force eTap AXS has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The ZX-1 EVO Force eTap AXS 2023 bike is equipped with 700c carbon wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ZX-1 EVO Force eTap AXS comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 158 cm – 194 cm (5.18 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
