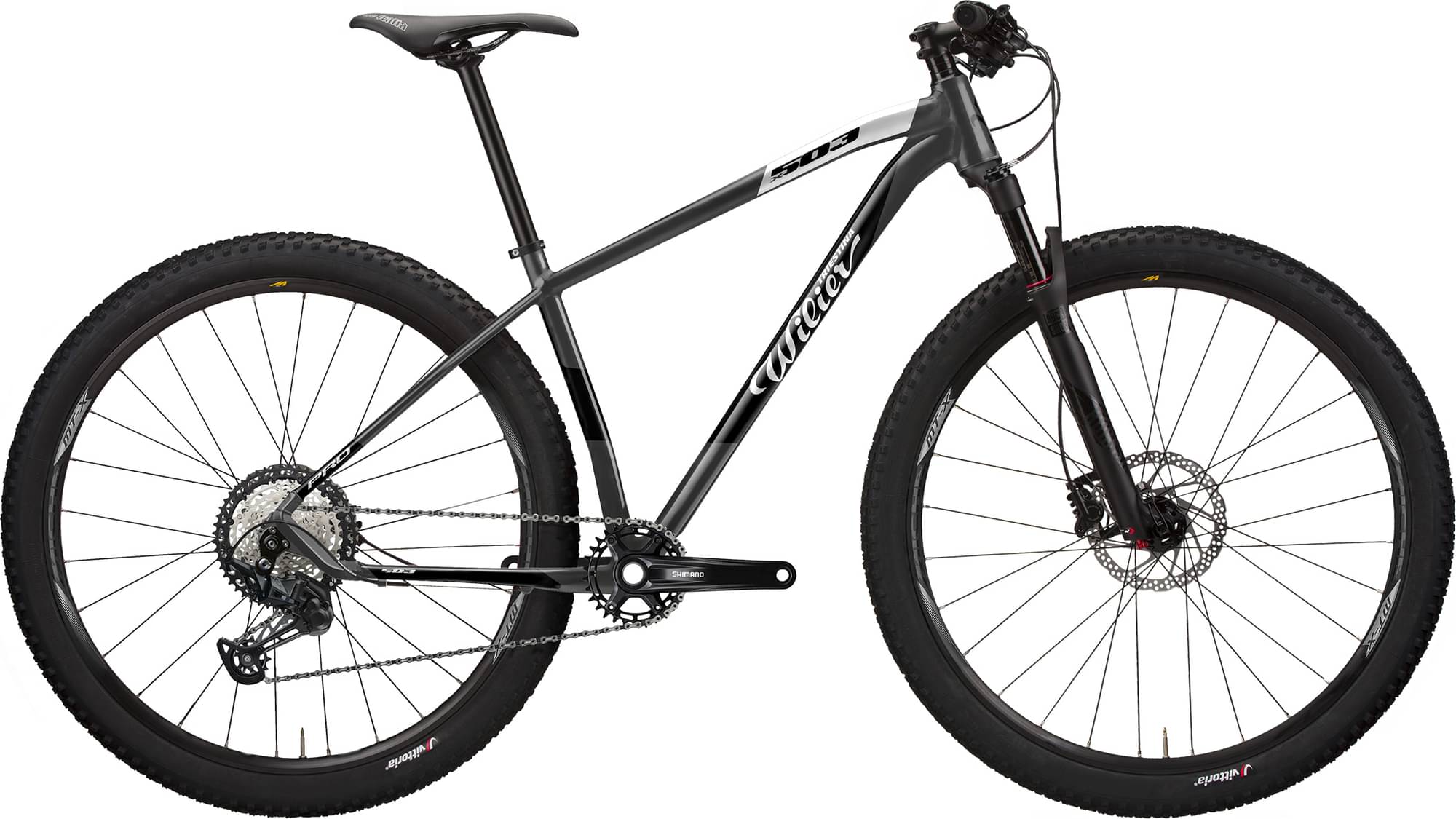

Wilier 503X PRO SHIMANO SLX 1X12 2023
2023 Mountain
Estimate price |
1,571$
Weight | 12.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset SLX, Shimano -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
156cm - 172cm
MD
169cm - 177cm
LG
174cm - 186cm
XL
183cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6066/6061 DOUBLE BUTTED, THRU-AXLE REAR DROPOUT 12 mm
Suspension Fork
ROCK SHOX RECON RL, 100 mm, BOOST
Drivetrain
Rear Derailleur
SHIMANO SLX 1X12 RD-M7100-SGS
Shift Levers
SHIMANO SLX 12S SL-M7100-R
Cassette
SHIMANO SLX 12S CS-M7100-12 10-51T
Crank
SHIMANO FC-MT510 32T
Bottom Bracket
SHIMANO PRESSFIT MT500-PA
Chain
SHIMANO SLX CN-M7100 118 LINK
Wheels
Rims
SHIMANO AWH-MT501
Tires
VITTORIA BARZO 29" x 2.25 Rigid
Brakes
Brakes
SHIMANO MT401
Disk Rotors
SHIMANO RT10 180 mm / 160 mm
Cockpit
Stem
PROMAX DA282
Handlebar
PROMAX HB-3018
Headset
RITCHEY COMP PRD15862
Seat
Saddle
SELLE ITALIA MODEL X
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.52 mm | 1.49 mm | 1.46 mm |
| Stack | 620 mm | 631 mm | 642 mm | 653 mm |
| Reach | 398 mm | 415 mm | 431 mm | 447 mm |
| Top Tube Length | 583 mm | 603 mm | 628 mm | 653 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 112 mm | 124 mm | 135 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 169 cm | 174 cm | 183 cm |
| Rider Max Height | 172 cm | 177 cm | 186 cm | 194 cm |
About this model
503X PRO SHIMANO SLX 1X12 is part of the Wilier 503x model. 17 bikes variations carry this model name so far. You can easily view all of the Wilier 503x bikes models from 2023, here.
Model range prices
The most economical model, the Wilier 503X PRO – SHIMANO DEORE 1×12 2023 has a starting price of 1327$. Wilier 503X RACE – SHIMANO XT 1×12 2.0 2023 on the other hand is the most expensive at 1699$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1433$. Comparing this to the average Crosscountry bike price, we see that the price is 32.94% smaller.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 12.7 kg (28 lbs), the 503X PRO SHIMANO SLX 1X12 model is slightly heavier than average. To sum up, it’s 2.42% heavier than the average weight of Crosscountry bikes.
503X PRO SHIMANO SLX 1X12 components
Fork
This bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the 503X PRO SHIMANO SLX 1X12 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Wilier 503X PRO SHIMANO SLX 1X12 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Wilier 503X PRO SHIMANO SLX 1X12 bike has 4 sizes, in the range of 156 cm – 194 cm (5.12 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
