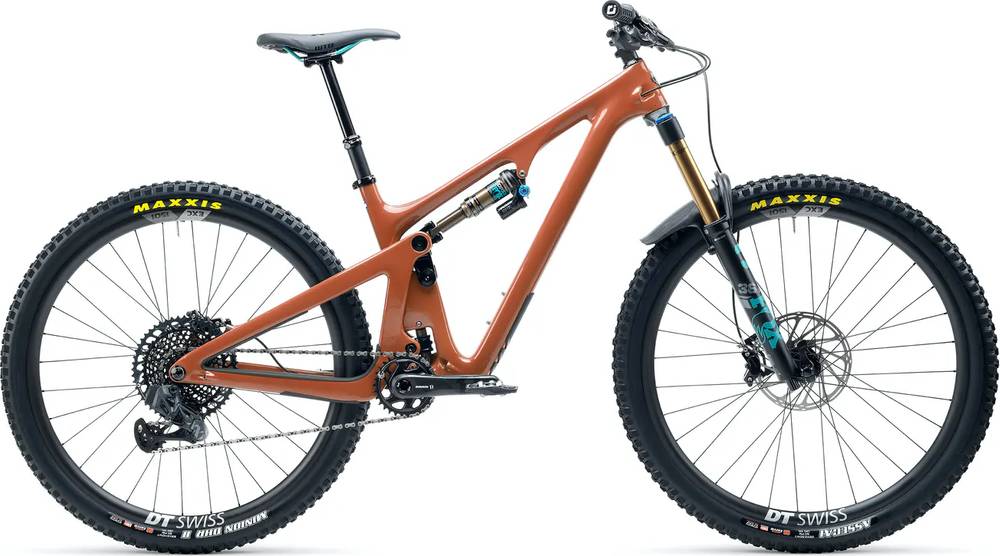

Yeti SB130 — T/Series / T1 2020
2020 Mountain
Estimate price |
6,900$
Weight | 13.65 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 130mm -
Fork Fox Factory Float 36
-
Groupset XT -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.
Suspension Fork
FOX FACTORY 36 FIT 4/150MM
Rear Shock
FOX FACTORY DPX2, 210 x 52.5MM
Drivetrain
Rear Derailleur
SHIMANO XT
Shift Levers
SHIMANO XT
Cassette
SHIMANO XT 10-51
Crank
SHIMANO XT 30T 170MM
Bottom Bracket
SHIMANO XT BB92
Chain
SHIMANO XT
Wheels
Rims
DT SWISS XM1700 30MM
Tires
MAXXIS MINION DHF 2.5 EXO
Brakes
Brakes
SHIMANO XT 4 PISTON
Disk Rotors
SHIMANO 203/SHIMANO 180
Cockpit
Stem
RACE FACE AEFFECT R 35X50
Handlebar
YETI CARBON 35X780MM
Grips
ODI ELITE PRO
Headset
CANE CREEK 40 INTEGRATED
Seat
Saddle
SILVERADO CUSTOM
Seatpost
FOX TRANSFER 31.6MM / SM: 125MM, MD: 150MM, LG-XL: 175MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 337.6 mm | 337.7 mm | 337.7 mm | 337.7 mm |
| Front Center | 740.9 mm | 772.6 mm | 797.2 mm | 826.7 mm |
| Stack | 608 mm | 611.8 mm | 621.8 mm | 631.8 mm |
| Reach | 427.2 mm | 457.2 mm | 477.2 mm | 502.2 mm |
| Top Tube Length | 567.7 mm | 598.9 mm | 622.2 mm | 650.4 mm |
| Seat Tube Angle | 77.1 ° | 77 ° | 76.9 ° | 76.9 ° |
| Seat Tube Length | 380 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 99.2 mm | 110.2 mm | 121.2 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1170 mm | 1202 mm | 1227 mm | 1256 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 720 mm | 722 mm | 725 mm | 727 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
SB130 — T/Series / T1 completes the Yeti Sb130 model. Yeti released 45 bikes variations of this model so far. You can easily view all of the Yeti Sb130 bikes models from 2020, here.
Model range prices
Yeti SB130 — C/Series / C1 2020 is the most affordable bike of this model and has a price of 5200$. On the other hand, Yeti SB130 — T/Series / T3 2020, is the most expensive and costs 8199$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2020 and its price was 6900$. Comparing this to the average Trail bike price, we see that the price is 149.82% higher.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 13.65 kg (30.09 lbs), the SB130 — T/Series / T1 model is a bit heavier than average. In short, the average Trail bike weight is 5.16% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The SB130 — T/Series / T1 comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Yeti SB130 — T/Series / T1 bike has the FOX FACTORY DPX2 model installed, and has a travel of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The SB130 — T/Series / T1 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Yeti SB130 — T/Series / T1 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
SB130 — T/Series / T1 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Yeti model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
